HG Step Drill Single Item (2.5-10.5)
$25.00
Skip to product information
■Product Description
●Package Specifications: Blister + Cardboard Backing
●Product Material: HSS (Drill Bit)
●Body Size (Length x Diameter): Approx. 115 x 10.5 (mm)

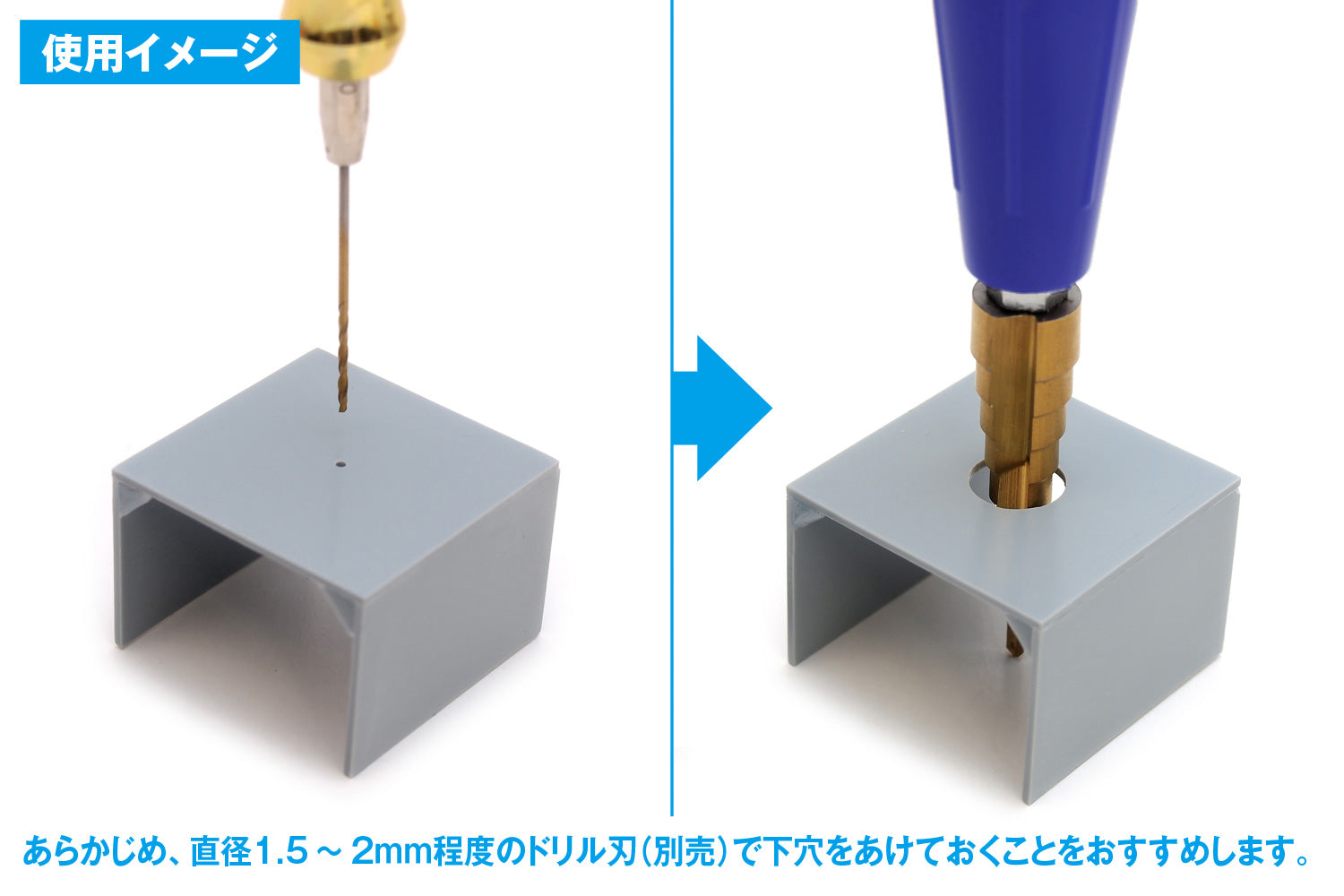

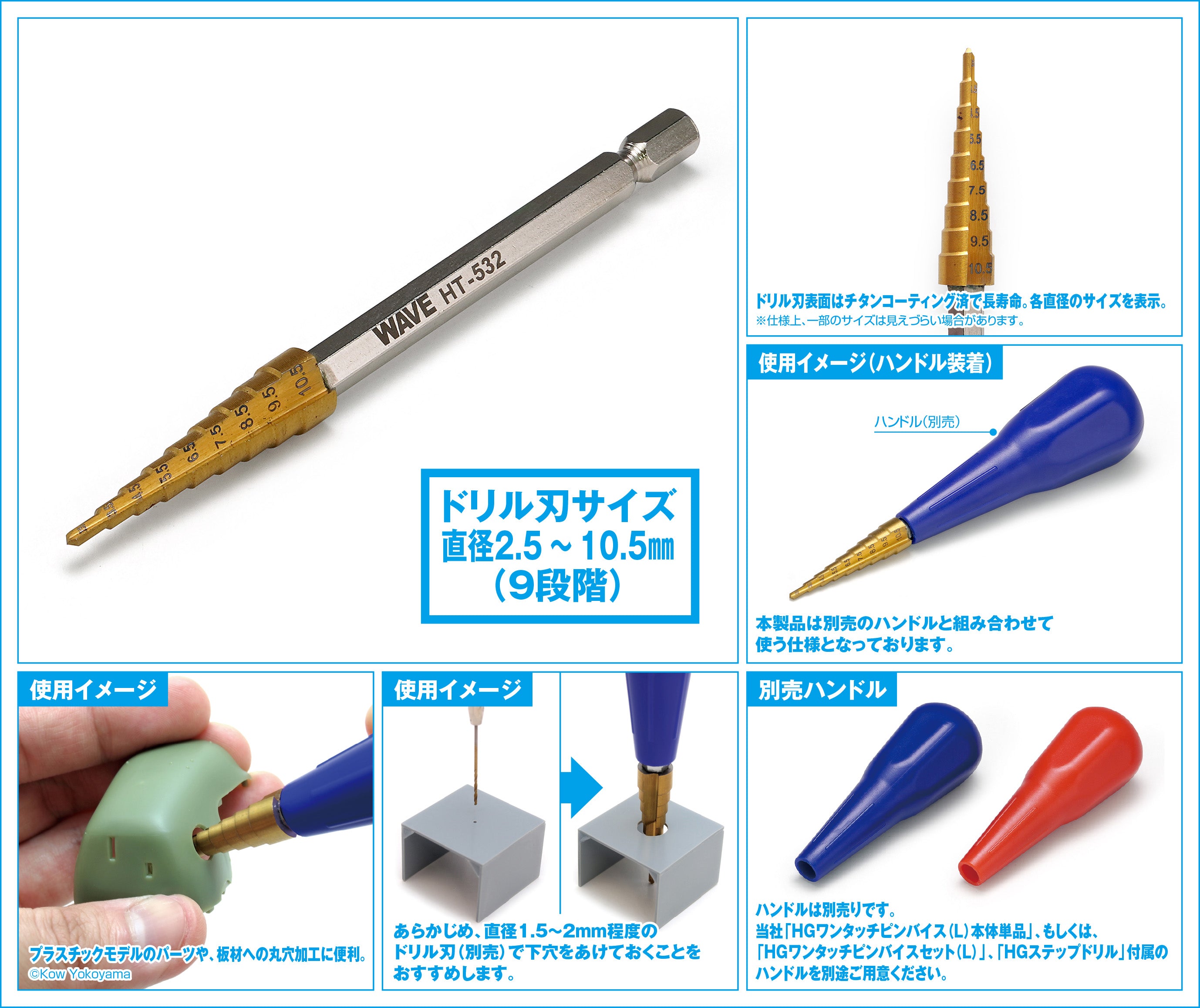

●Product Description: This is a step-type drill bit (single item) that is convenient for drilling round holes in plastic model parts and sheet materials. This is a variation of our conventional product "HG Step Drill," and by increasing the diameter of each drill bit by 0.5 mm, it is now possible to drill holes in 9 stages from 2.5 to 10.5 mm.
●【Step Drill Specifications】・Drilling Diameter: 9 steps (2.5 / 3.5 / 4.5 / 5.5 / 6.5 / 7.5 / 8.5 / 9.5 / 10.5 mm)
●【Target Materials】: Thin sheets of light metals such as plastic, aluminum, and brass
●【Drillable Thickness (Plastic)】: Up to 2 mm

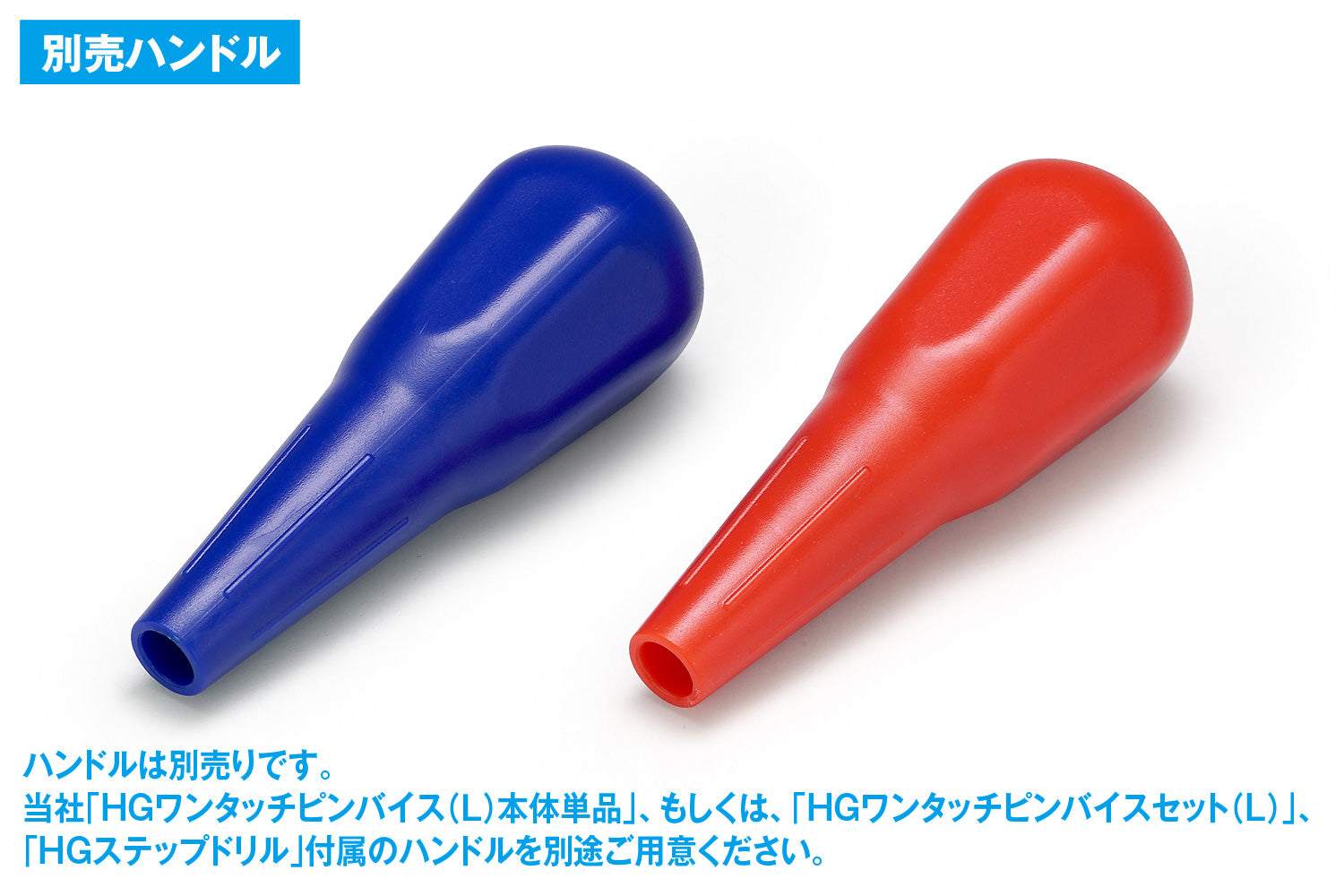

(Note) Not suitable for processing carbon-based materials. Due to the structure of the product, it is not suitable for drilling deep round holes in thick materials or block-shaped materials. The handle is sold separately. Please prepare the handle included with the "HG One-Touch Pin Vise (L) Body Only", "HG One-Touch Pin Vise Set (L)", or "HG Step Drill" separately.
【Caution】This product is a cutting tool, so please handle it with extreme care.
■Product Specifications
Manufacturer: WAVE CORPORATION
Item No: HT-532
JAN: 4943209385324
