■Product Description

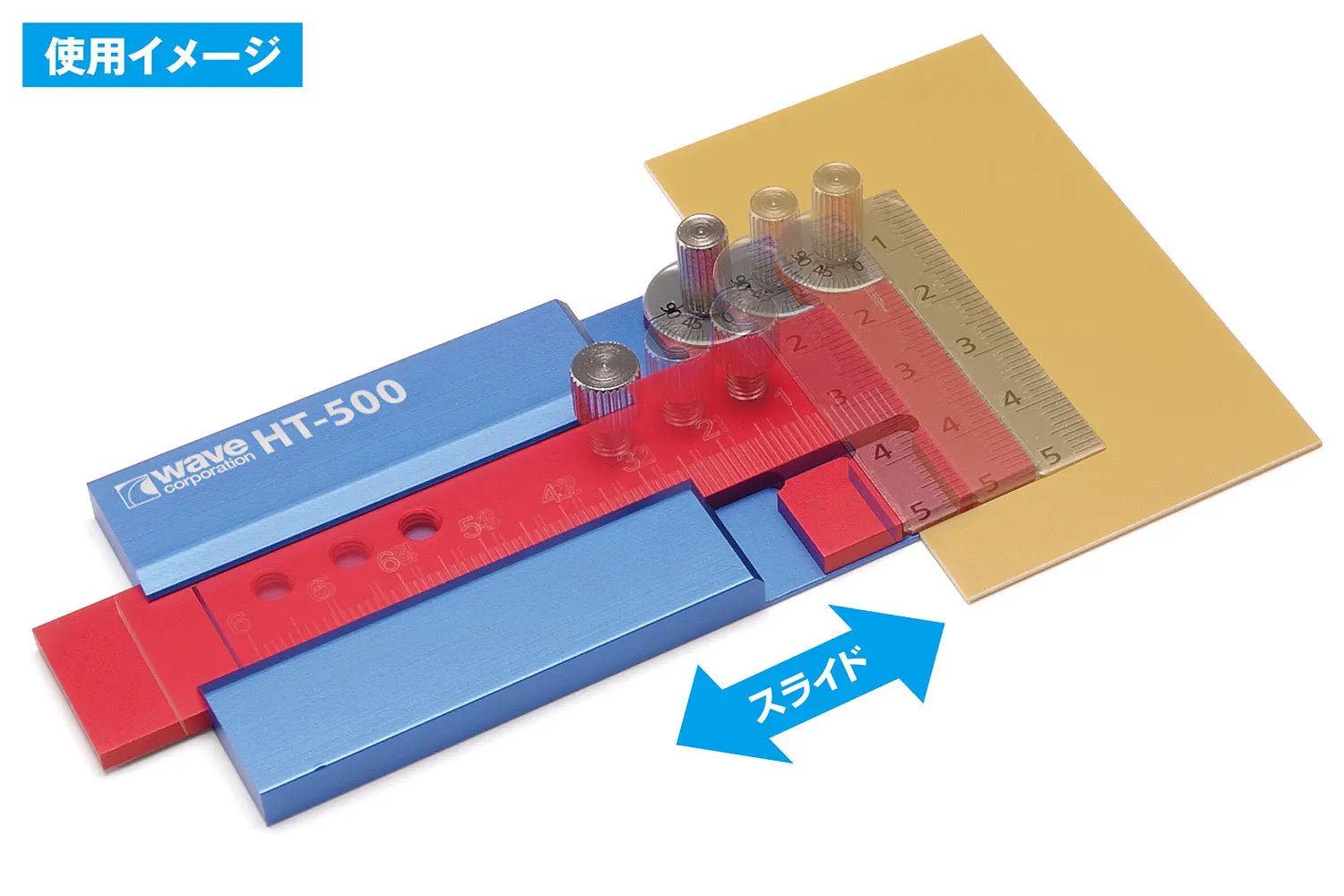

The T-ruler slides and rotates parallel to the surface!
This measuring tool features a T-ruler that slides parallel to the surface, and a rotating scale at the tip.

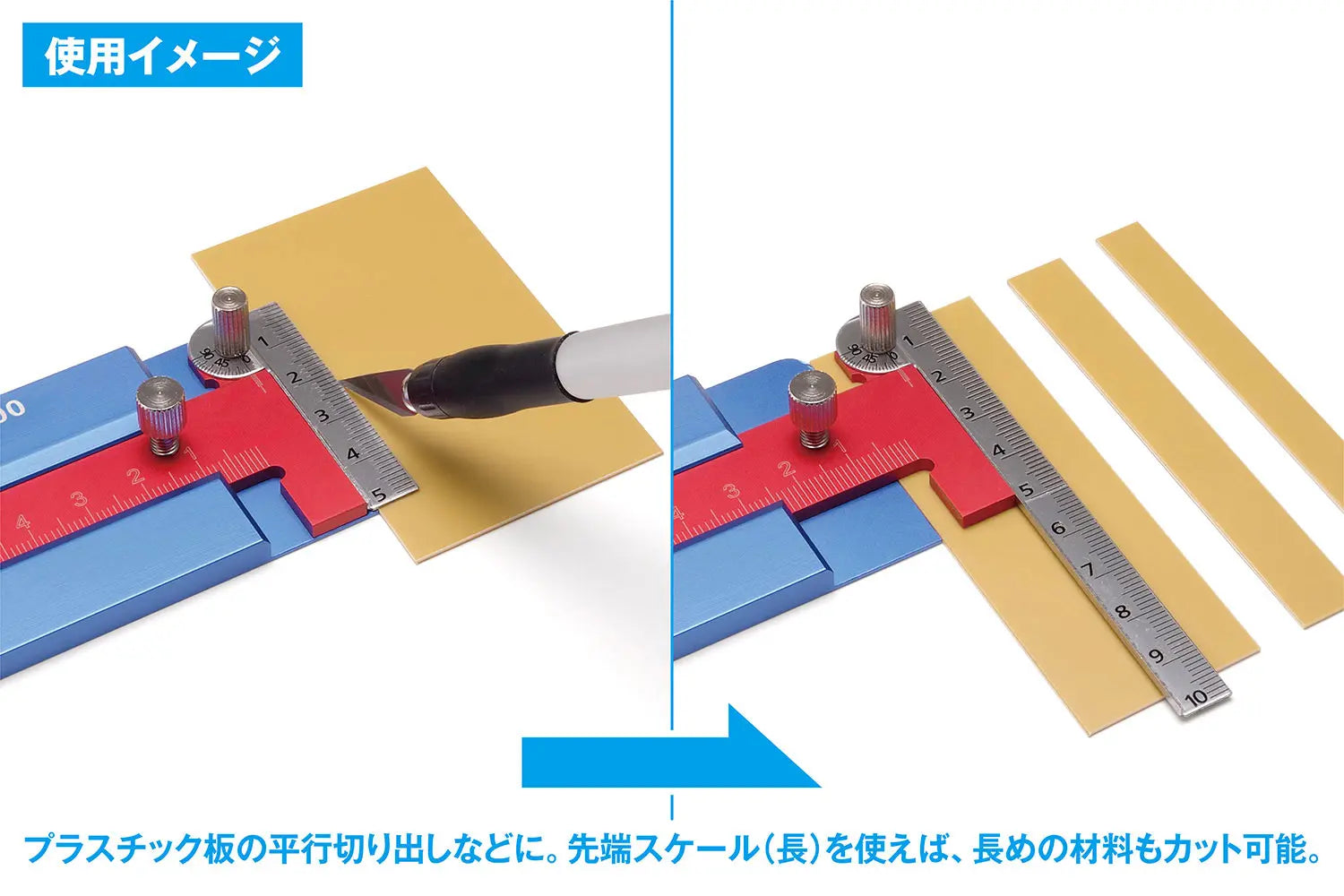

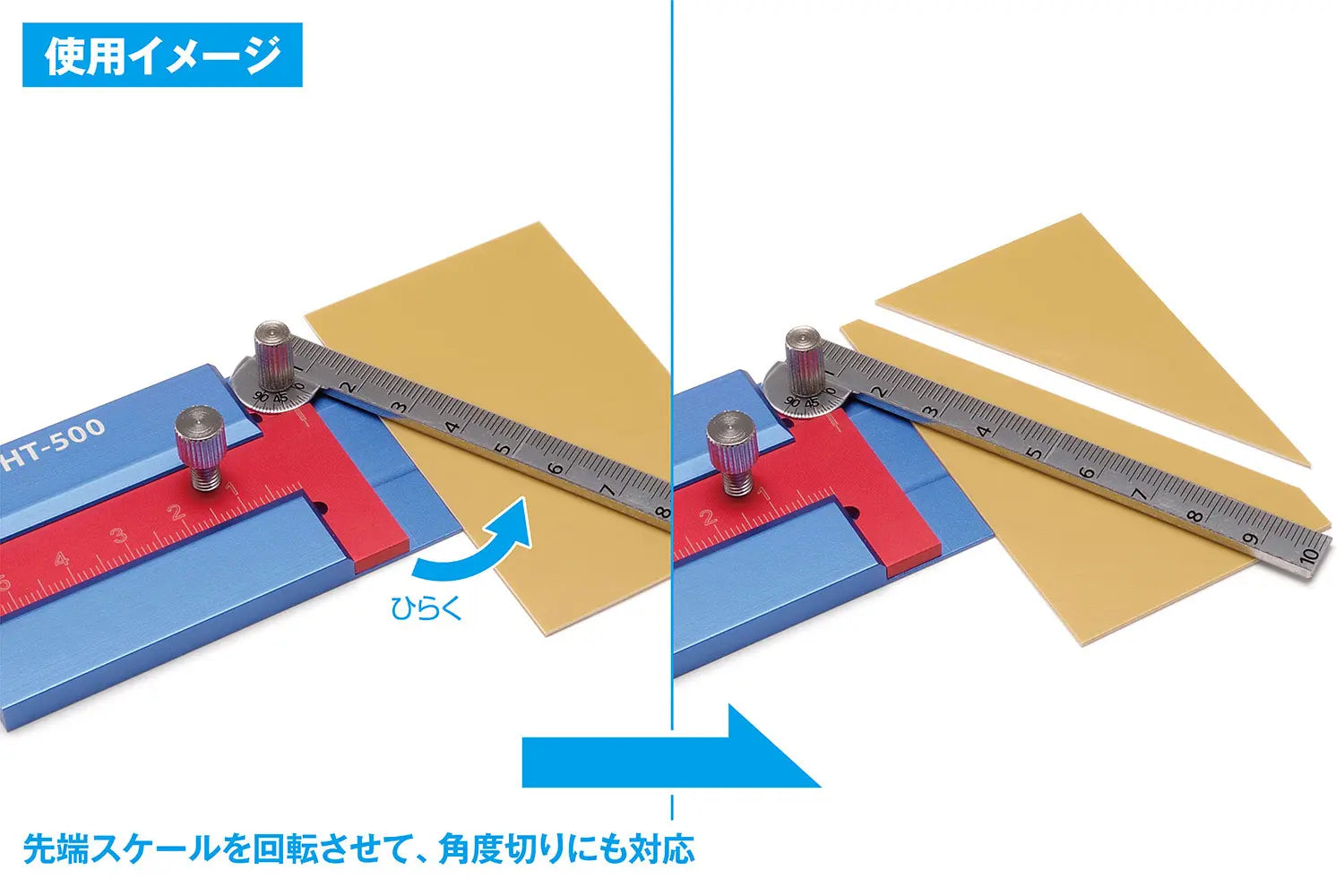

Convenient for parallel cutting of plastic sheets, as well as as a guide for angle cutting and other tasks!
The compact body is easy to handle and made of aluminum, achieving a good balance between lightness and strength.

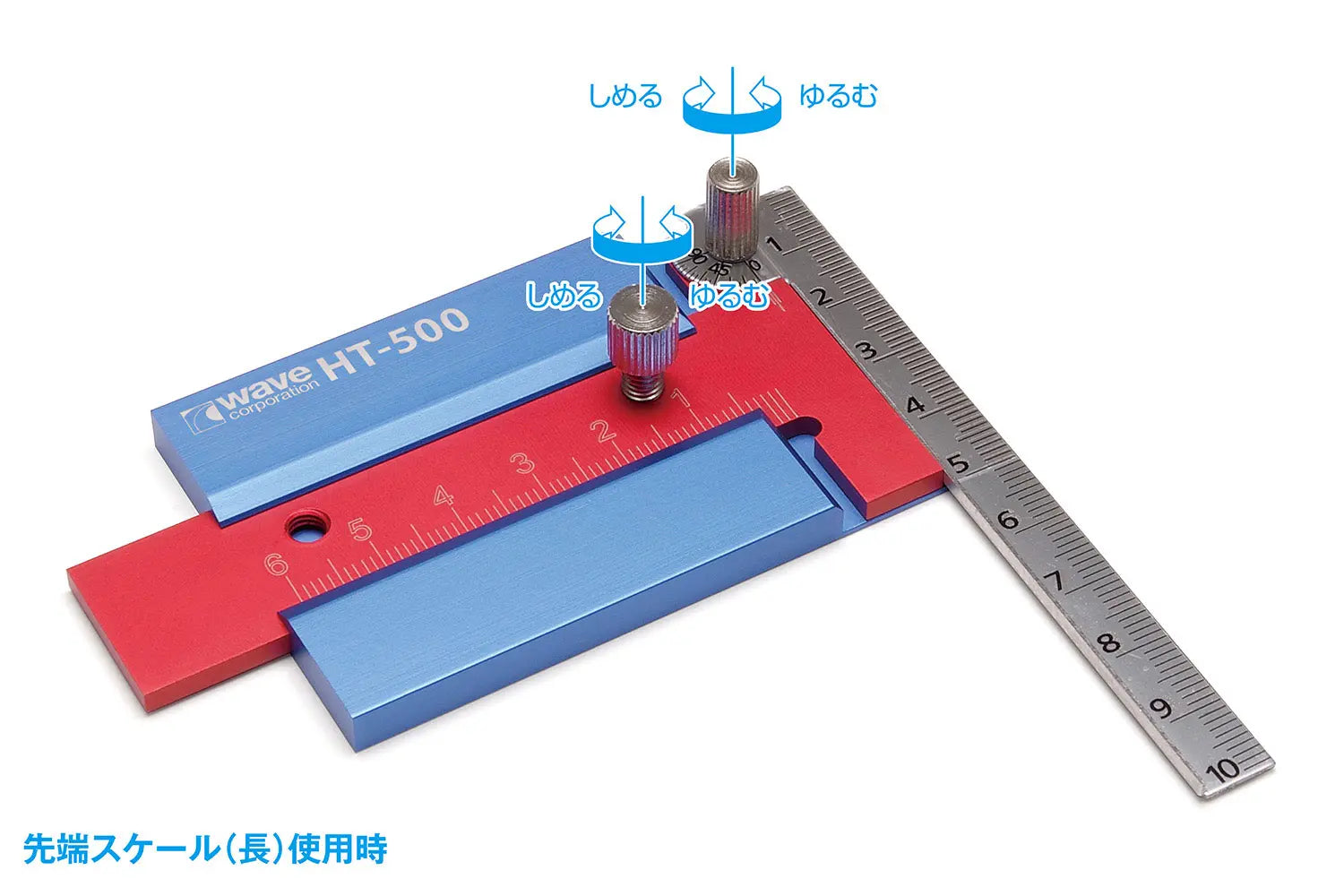

Two types of rotating scales, long and short, are included. The long (100mm) scale can be used to cut longer materials.
The markings on each part are created with laser engraving, making them easy to see and resistant to fading.

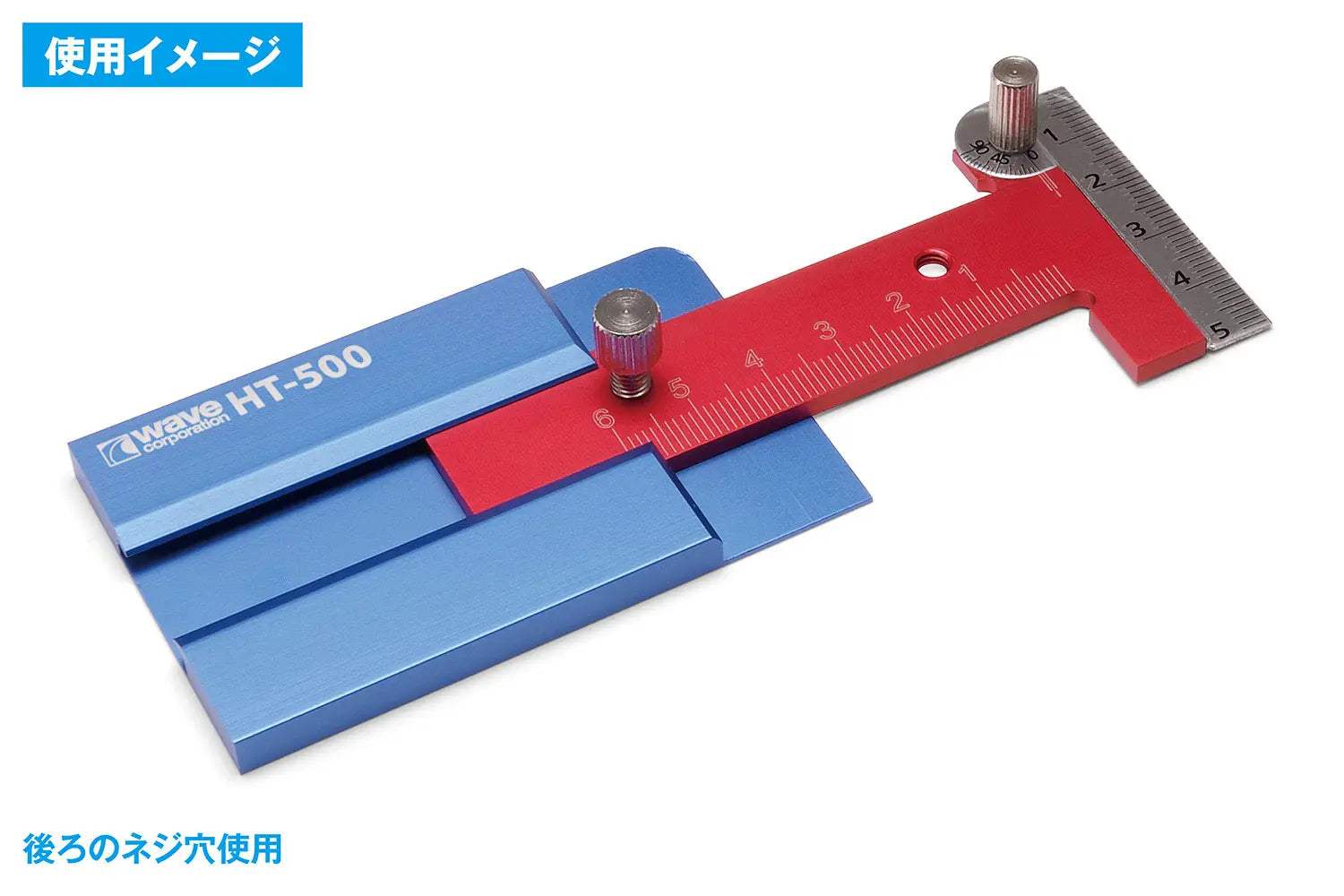

The range of motion of the T-ruler can be adjusted by changing the position of the screw holes where the fixing screws are tightened.
■Product Specifications
Manufacturer: WAVE CORPORATION
Item No: HT-500
Size: Main body size: Approx. 100 x 50 x 17 mm
*When the short tip scale is attached
Material: Aluminum, brass, stainless steel
Product Specifications: T-ruler slide range: 0 to approx. 60 mm

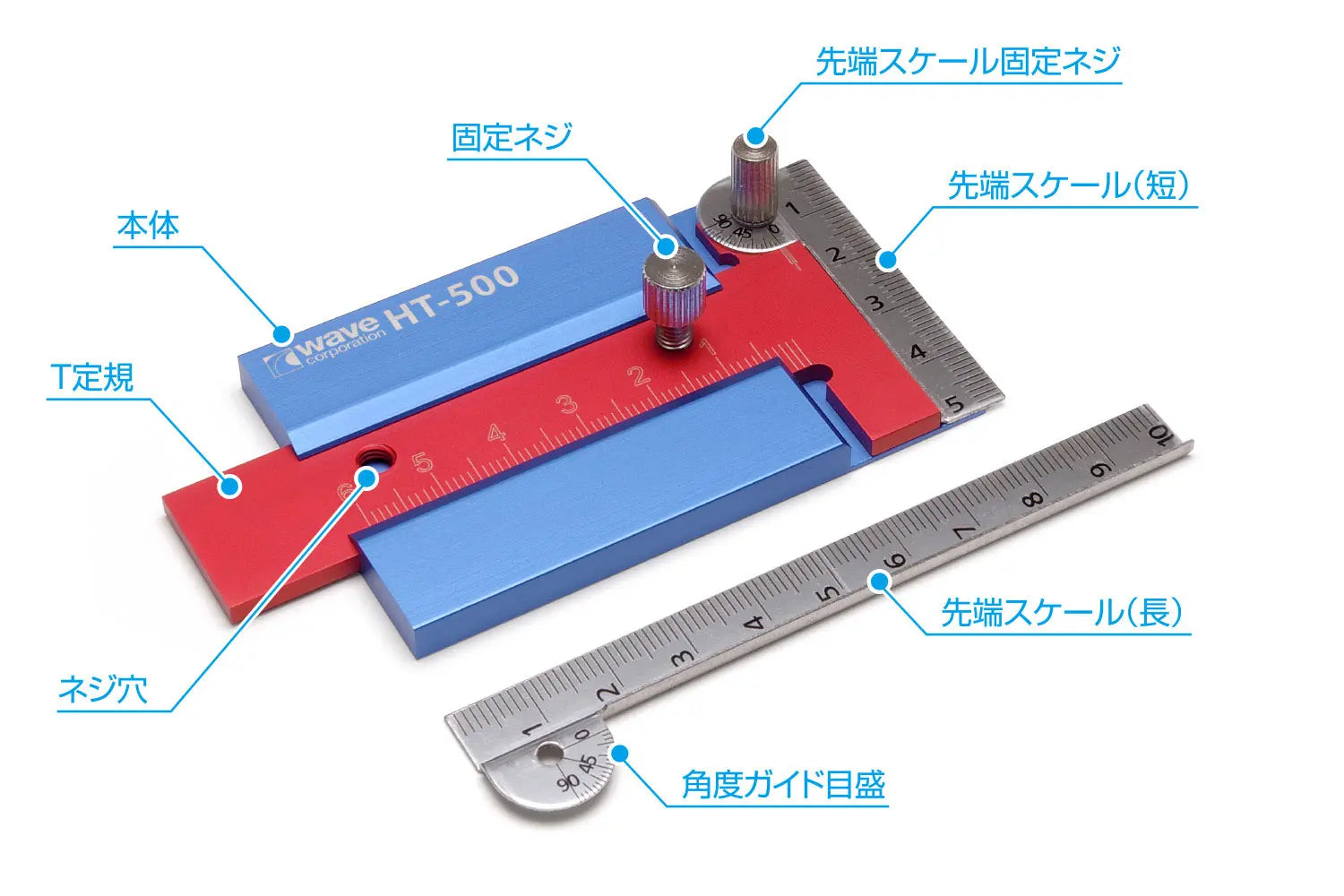

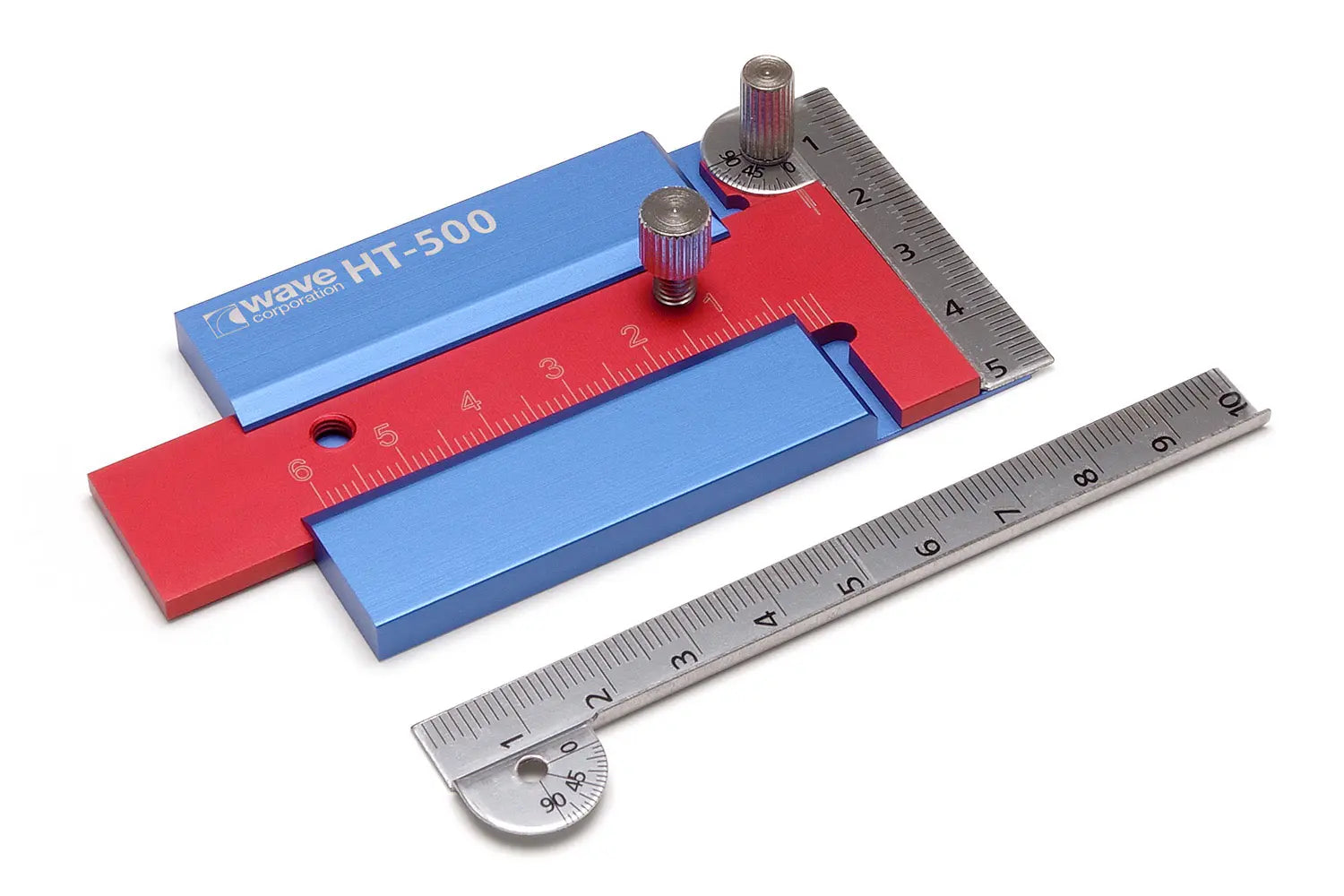

Contents/Accessories: Accessories: Two types of tip scales: long (100 mm) and short (50 mm)
Weight: Approx. 60 g
*When the short tip scale is attached
JAN: 4943209385003
■Remarks
[Caution]
*Please use the scale of this product as a guide only. It may not be suitable for measurements requiring strict accuracy.
*The image is of a product under development. The actual product may differ. Please understand.
*Tools, materials, and parts other than this product used in the explanatory photos are not included.
