Shokunin Katagi Stainless Steel File for Resin Shine Blade 6
$34.00
Skip to product information
■Product Description
The unique U-shaped groove structure in the valleys virtually eliminates clogging.
◆A special model utilizing CNC (computer numerical control) milling and craftsmanship!
●Completely different from the structure of a typical file where a chisel is driven in to create the teeth, the grooves are cut with a CNC milling machine to create the file teeth. As a result of grinding away the surface, the surface is very refined and a good cutting edge is obtained.

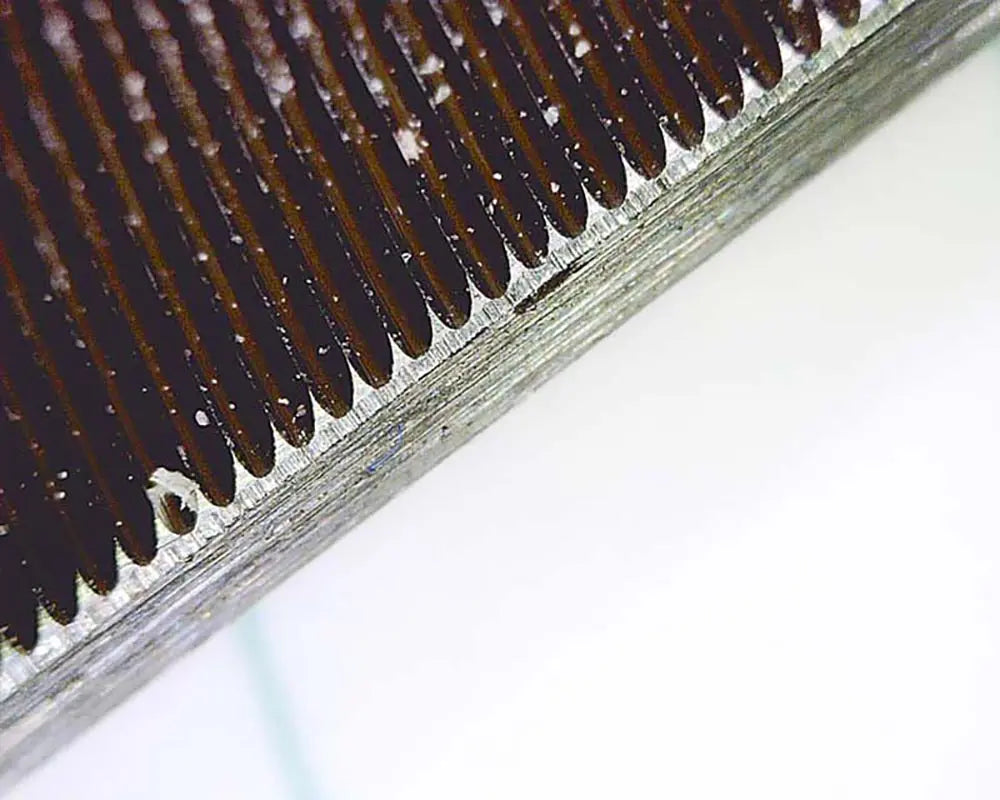

●With conventional files, when a chisel is driven in, the bottom of the teeth becomes V-shaped as shown in the diagram above, making it difficult for shavings to escape and causing clogging. However, the teeth obtained by cutting with a CNC milling machine have a rounded and wide bottom, making them less prone to clogging, and even if they appear clogged, the debris can be easily removed by brushing them away.
●The double teeth have cutting power, and the single teeth provide a clean finish, resulting in significantly improved work efficiency. Made of rust-resistant stainless steel, it can be washed with water and always kept clean for use.
■Blade width 6mm x Total length 150mm x t2
■Product specifications
Manufacturer: Shimomura Alec (Platz)
Item No: AL-K229
Size: Blade width 6mm x Total length 150mm x t2
Blade total length 75mm
Material: Stainless steel

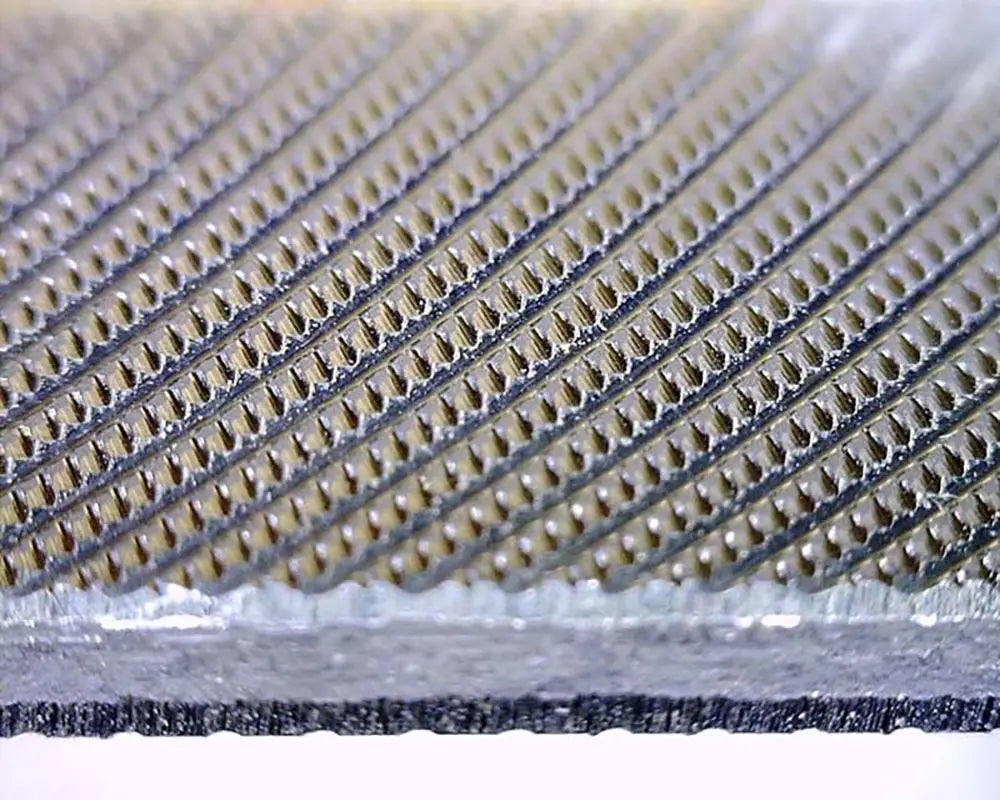

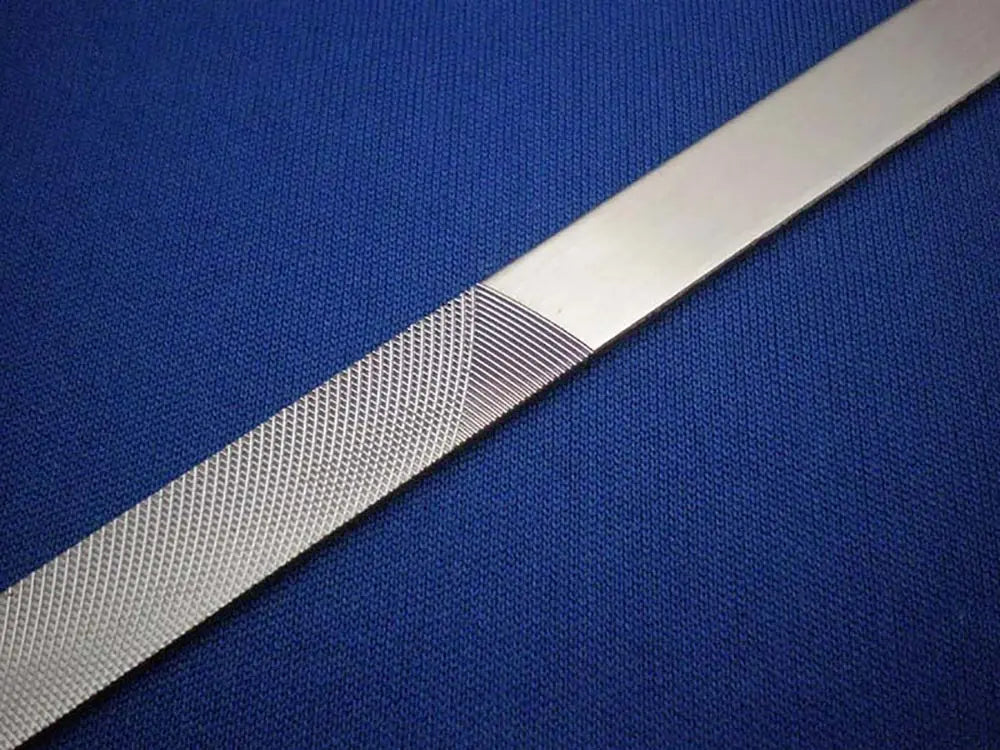

Product specifications: Blade side A: Double cut, equivalent to #400

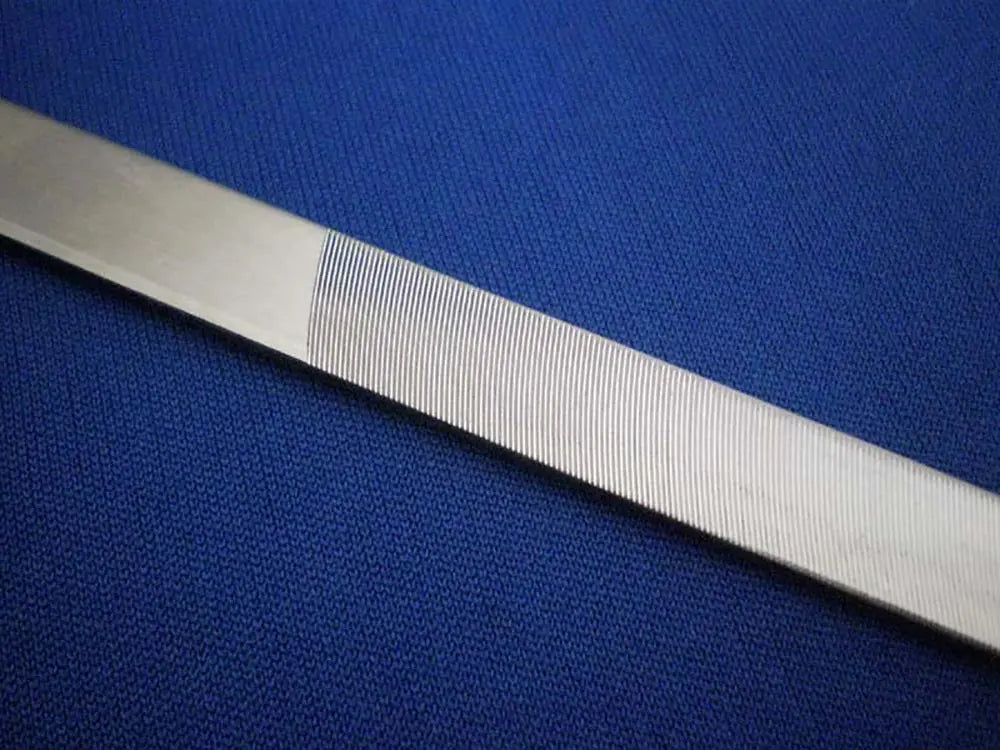

Blade side B: Single cut, equivalent to #1000
Related companies: [Planning] Shimomura Alec Co., Ltd. [Sales] Platz Co., Ltd.
JAN: 4562256113454
■Remarks
*In conjunction with the release of the Shokunin Katagi Resin-Specific Stainless Steel File Shine Blade 6 (AL-K229), the Shokunin Katagi Resin-Specific File Shine Blade W6 (AL-K55) will be discontinued.
●Specifications and prices may be changed without notice due to product improvements. Please understand in advance.
